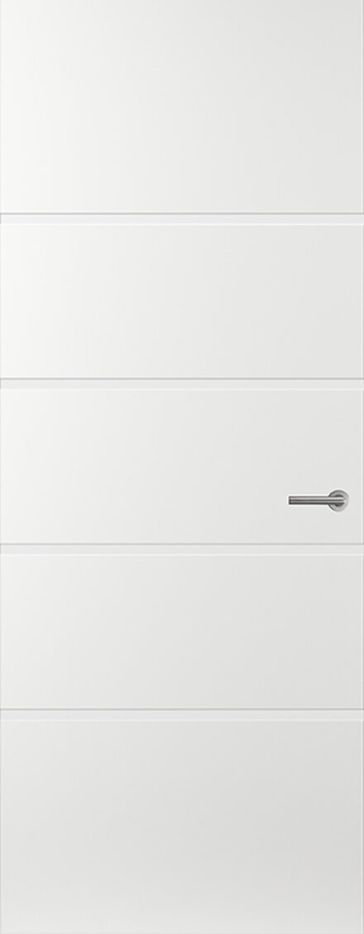

Full product description for Interior Slotted door FR566 | Frame
Chant
Flat-edged, Lap-edged
Lace shape
With straight laps.
Width Lap
630, 680, 730, 780, 830, 880, 930mm Overlapping door leaf size (including hinged): 656, 706, 756, 806, 856, 906, 956, 1006, 1056, 1106, 1156, 1206 mm. Non-standard width on request. Minimum sizes 400mm Maximum sizes 1154mm
Door flat edge width
630, 680, 730, 780, 830, 880, 930 mm Non-standard width on request. Minimum sizes 400 mm Maximum sizes 1154 mm
Door height
2015, 2115, 2315 mm Non-standard height on request. Minimum sizes: 1580 mm Maximum sizes 2400 mm
Finishing
Lacquered with Superlak EPC®. Color available: Alpine White, Extra White. Bottom of doors sealed with hotmelt.
Door Options
Drilling for spy (spy delivered separately), Groove at the bottom of the sliding door, Threshold, Double door with rebate/counter-rebate construction, Drilling and ventilation grille supplied and installed (depending on the door model)
Hinges and locks
All doors have a mortise for BB lock (key). Non-standard mortise on request. Overlay door supplied with 2 or 3 holes (depending on height) for V0020 plugs, supplied and installed. Flat edge door supplied with 3 notches for Argenta 80/80 hinges, hinges ...
Opening direction
Left, Right (DIN)
Packaging
Doors come standard packaged in cardstock and plastic.
